We are a specialist manufacturer of a wide range of architectural and performance louvers; hurricane/stormproof louvers, sandtrap louvers, weather louvers, louvered sunshades, exterior sun control devices, acoustic louvers, district cooling louvers, penthouse louvers, and roof equipment screens for the construction industries.


The performance characteristics are tested and certified as per ANSI/AMCA Standard 500-L, the standard establishes uniform test methods for determining pressure drop, water penetration, air leakage, penetration of wind-driven sand, and penetration of wind-driven rain.

TYPES OF LOUVERS

AMCA Certified Hurricane/Stormproof Louver

The VSFL-130 offers exceptional protection against wind driven rain under the most severe conditions and is ideally suited for high wind areas or applications that are sensitive to wind-driven rain penatration. the VSFL-130 incorporates horizontal blades and is available in a wide array of anodized and powder coated finishes including custom color matching.

AMCA Certified Weather Louver (Drainable and non-drainable type)

Vent Line louver is designed to provide weather resistance excellent air volume qualities with high resistance in water penetration. VTL-437 is suitable for special application and supplied with concealed millions for continuous blade or modular assemblies. Vertically installed into the wall opening of the building.

AMCA Certified District Cooling Vision Barrier Louver

Ventline District Cooling Louvers is designed to provide weather resistance and vision barriers. VCD-150 is suitable for special application for enclosing MEP equipments and can supplied with concealed millions for continuous blade or modular assemblies. Vertically installed into the wall opening or parapet of the building.

AMCA Certified Drainable Blade Louver

Ventline double-drainable louvers is designed to provide weather resistance and excellent air volume qualities with high resistance in water penetration. VDL-100 is suitable for special application and supplied with concealed millions for continuous blade or modular assemblies. Vertically installed into the wall opening of building.

Sunshade Louver

Sun Shade system, also known as Brise Soleil, when engineered properly can reduce the energy requirements of the building. All Vent Line systems have been structurally proven by fully qualified engineers. The Vent Line range solar shading products are usually placed on the external facade of a building adjacent to windows to reduce sun and heat entry into building.

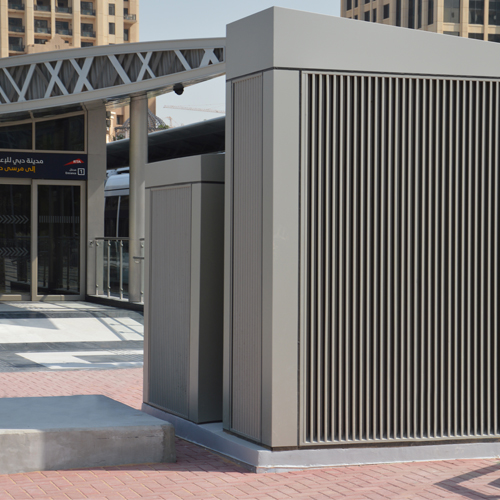

AMCA Certified Sand trap Louver (Heavy duty and standard)

Designed to provide ventilation inside the building and at the same time to prevent the ingress of dust and sand particles. Used where there is high degree of separation samd and large dust concentration is required. Vertically installed into the wall opening of the building.

AMCA Certified Acoustic Louver (Up to 20 STC)

Designed to provide dual function of weather protection and airborne should reflection applicable for industrial and commercial purpose. The sound ratings are based om sound transmission standards ASTM E90-04 and ASTM E413-04

AMCA Certified Double Bank Louver

Vent Line louvers designed to provide weather resistance and excellent air volume qualities with high resistancein water penetration. VTL-PWM-150 is suitable for special application and supplied with concealed millions for continuous blade or modular assemblies. Vertically installed into the wall opening of the building.

Louvered Door

Designed for access and at the same time to proved ventilation inside the buildings. Usually use for plant room, generator room or electrical room. Complete with industrial door ironmongeries and in various type of finishes.

Penthouse Louver

Penthouse Louvers are typically assembled louvers on the roof, mounted on a curb, and can be sculpted into custom shapes. Vent Line assembles penthouses that are ordered up in any size and can be a stormproof type for exhaust and sand trap for intake. Having an inclined or flat roof surface depends on the need of the project.

CONSTRUCTION & CONFIGURATION

Manufactured from Extruded aluminium Alloy - 6063 T5 or T6 other materials from aluminium sheets - Alloy 1100/3003/5005 or galvanized steel and stainless steel of any grade
Finishes PVF2 / PESDF / PEF / Epoxy to standar RAL colours comply with AAMA 2603 - AAMA2605 Anodizing - Matt or Metallic Finish
Testing and Ratings
Hurricane / Stormproof Wind-driven rain, water penetration, free area & air performance
Sandtrap Wind-driven sand, free area (30% to 50%) & air performance
Weather Louver (Drainable / Non-Drainable) Water penetration, free area(Up to 59%) & air performance
District cooling Vision barrier Air performance & free area
Acoustic Louvers Sound performance, water penetration, free area & air performance
